Changsung Sheet puts superior technology and quality first

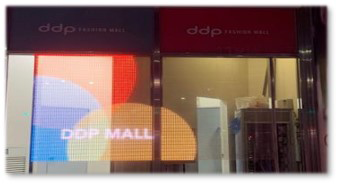

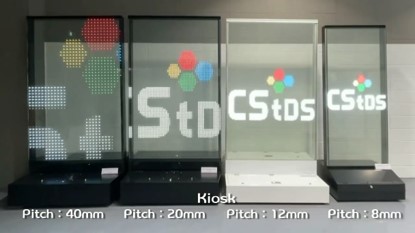

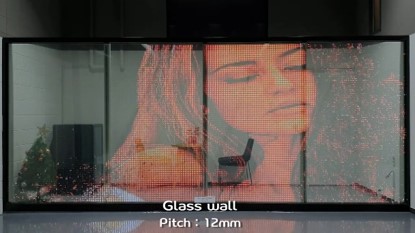

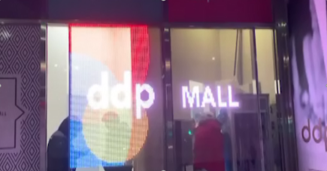

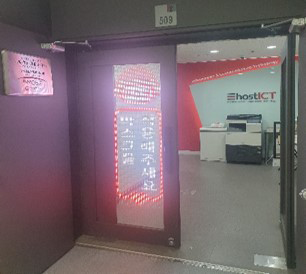

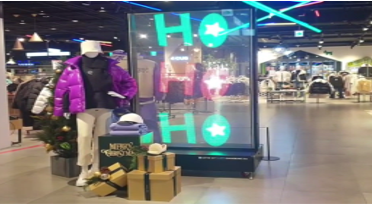

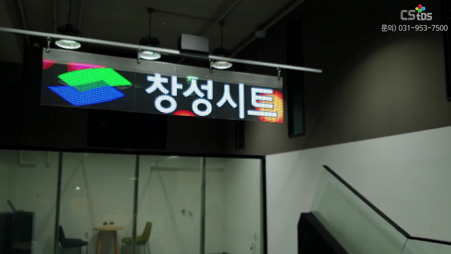

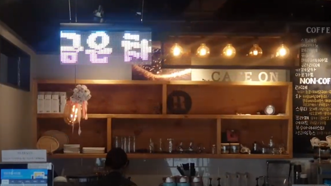

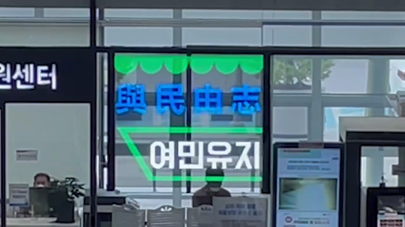

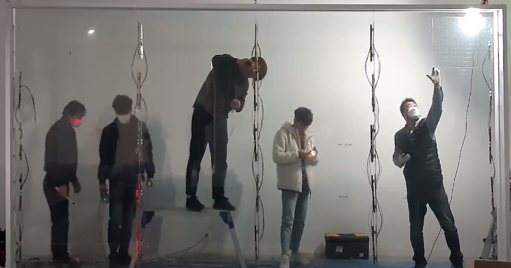

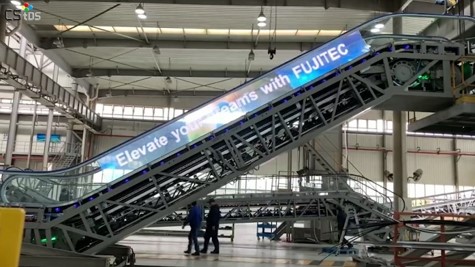

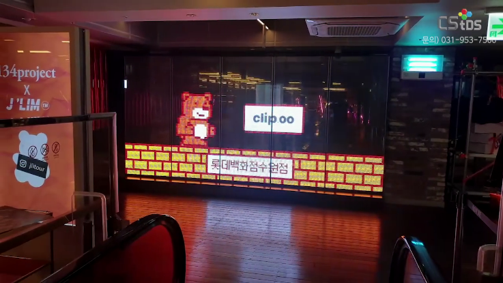

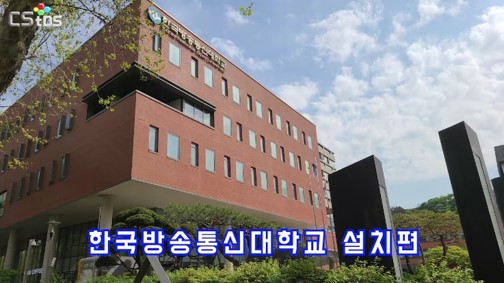

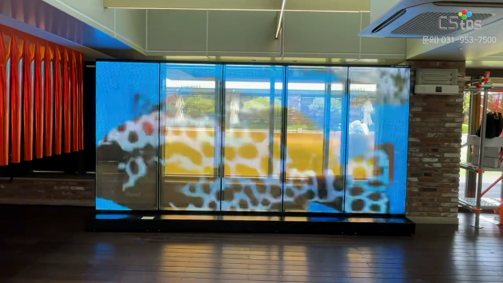

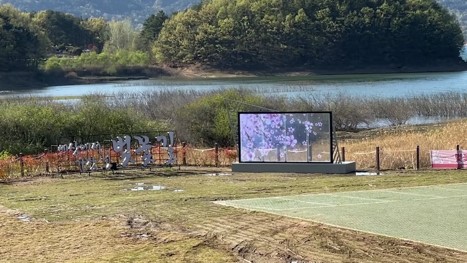

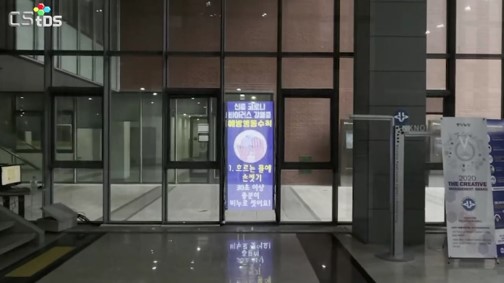

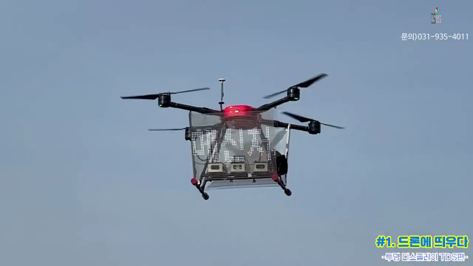

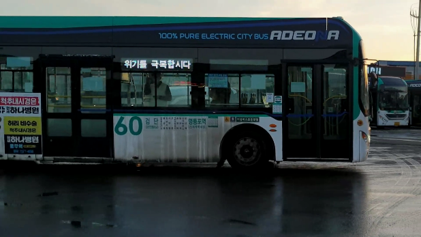

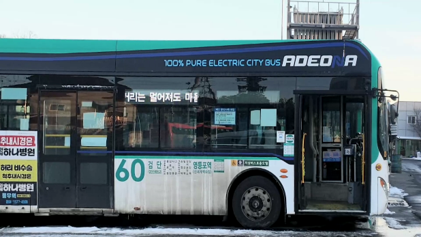

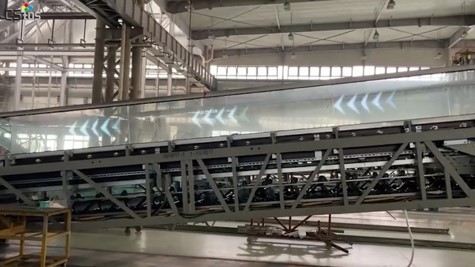

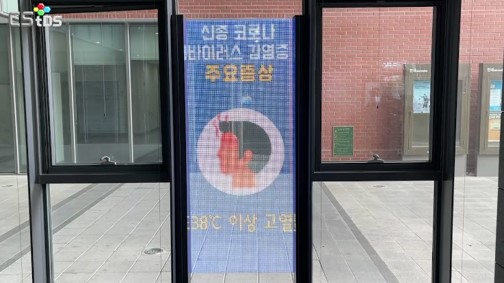

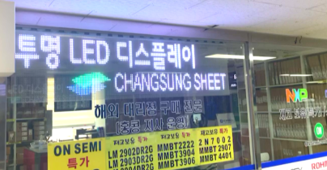

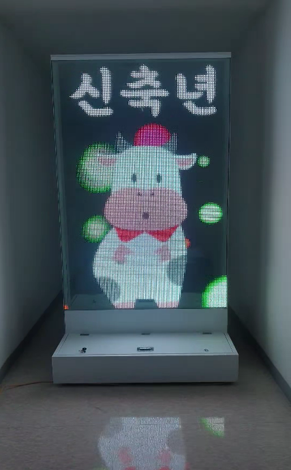

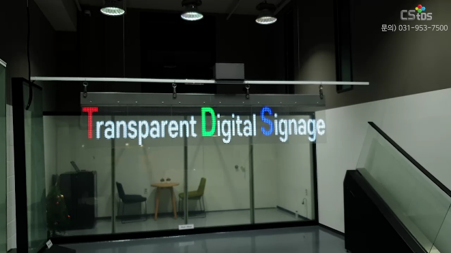

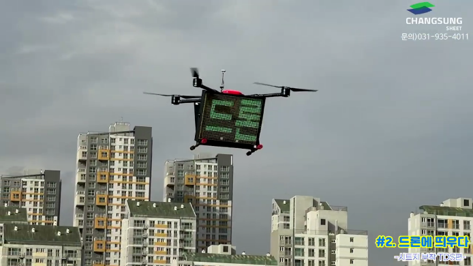

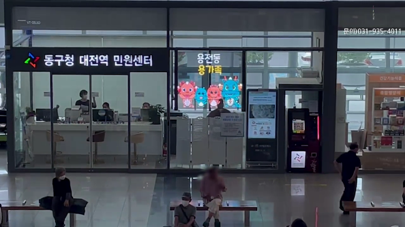

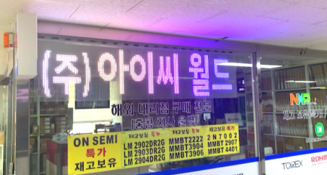

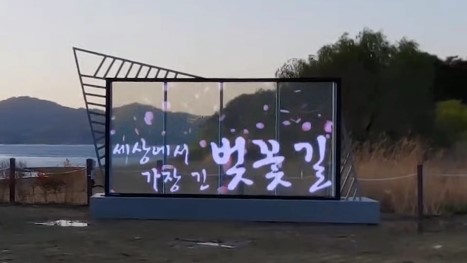

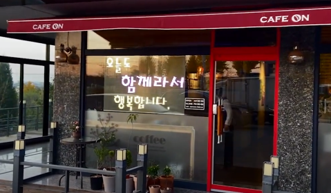

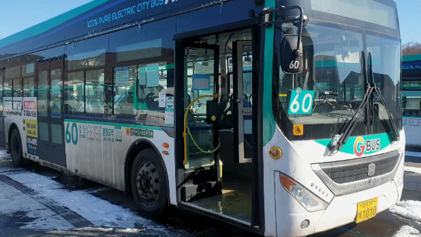

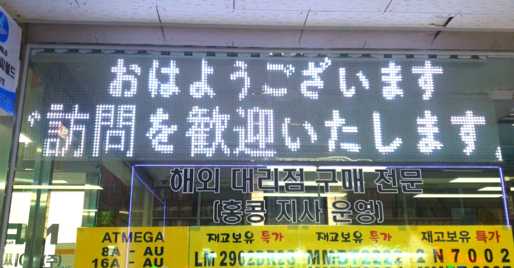

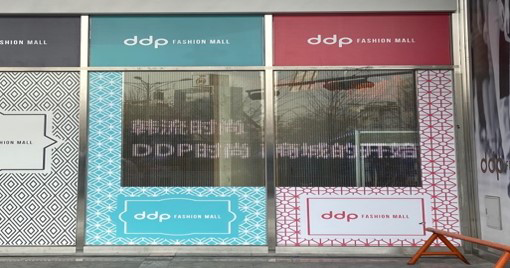

Transparent LED Display : Film type tDS Diagram, Specification, Installation case

  • Transparent LED Display : Film type

    • √. tDS Characteristic

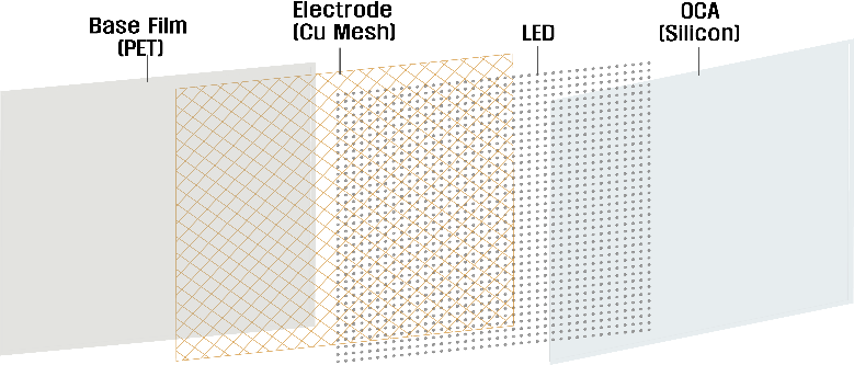

      A product that complements the shortcomings of existing electronic boards by mounting the LED on the PET film base with transparency, weight reduction, and flexibility.

      1.
      Transparent      		 Maintaining the transparency of glass.
      You can see the interior from the outside while playing media
      Provides users with a sense of openness that could not be felt in the existing electronic board
      2.
      Flexible      		 Curved and polyhedral construction is possible.
      Various types of display possible
      Prevents scattering of debris when the window is damaged by impact
      3.

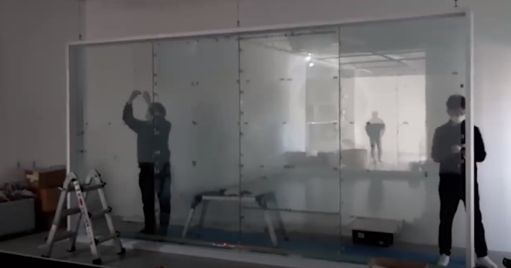

      Convenient      		 Easy attachment and construction with front silicon adhesive lamination
      TDS can be installed on glass surfaces that could not be installed due to weight reduction
      Freely attachable and detachable without damaging the building or glass
      1㎡ Per 20mm P(3535) 2,145g
      1㎡ Per 12mm P(2020) 1,320g

    • √. Specification
      Including wattage per sheet and maximum size

      Pattern Type Classification Module
      LED Pitch Model Name Active Area
      [㎜/chapter]      		 LED quantity
      [EA/chapter]      		 LED
      Resolution      		 Power consumption
      ( W/sh )      		 Weight
      ( g )
      Mesh 30 mm CStDS_Uranus_30P16MA 480 x 480 256 16 x 16 12 W 446
      20 mm CStDS_Jupiter_20P30MA 600 x 480 768 30 x 24 35 W 561
      12 mm CStDS_Earth_12P40MA 480 x 480 1,600 40 x 40 72 W 444
      CStDS_Earth_12P50MA 600 x 480 2,000 50 x 40 90 W 571
      8 mm CStDS_Venus_08P50MA 400 x 480 3,000 50 x 60 135 W 592
      Wire 30 mm CStDS_Uranus_30P16WA 480 x 480 256 16 x 16 12 W 446
      20 mm CStDS_Jupiter_20P30WA 600 x 480 768 30 x 24 35 W 561
      12 mm CStDS_Earth_12P40WA 480 x 480 1,520 40 x 40 72 W 444
      CStDS_Earth_12P50WA 600 x 480 2,000 50 x 40 90W 571
      8 mm CStDS_Venus_08P50WA 400 x 480 3,000 50 x 60 135 W 592

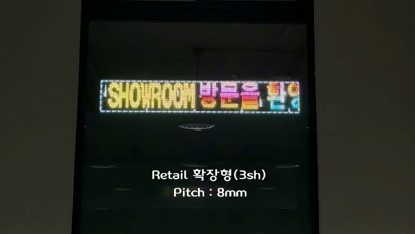

      Retail 12 mm CStDS_Earth_12P22RA 264 x 480 880 22 x 40 40 W 1,042
      (Including equipment)
      8 mm CStDS_Venus_08P22RA 176 x 480 1,320 22 x 60 60 W 1,013
      (Including equipment)
      6 mm CStDS_Mercury_06P22RA 132 x 480 1,760 22 x 80 80 W 840
      (Including equipment)
