New Products CNT
-
CSP-CNT : Protection of OLED Device
-

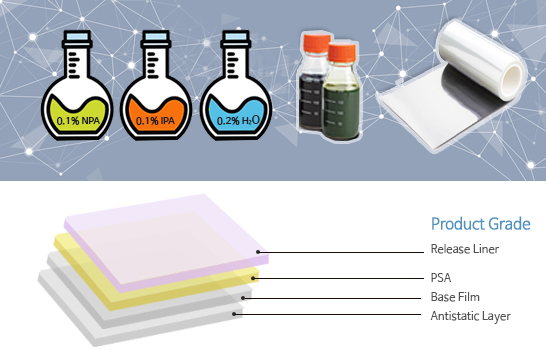

ITEM Material Thickness Release Liner SI coated PET Film 5 ㎛ PSA Acrylic Resin 10 ㎛ Base Film PET Film 50 ㎛ Antistatic Layer SWCNT 200~300 nm
-
√. Product Features: :
Protection of OLED Device
Excellent Surface Resistance.
√. PHYSICAL DATAEvaluation ITEM Unit Value Test Method Total Thickness ㎛ 110 ASTM D3652 Base Film Thickness 50 Adhesive Thickness 10 Release Film Thickness 50 Adhensin Strength PET gf/25mm 4.0 ± 1.0 CS Method : Leaving products for 300mm/min, 180° peel at a room temperature condition (23 ℃ / 30 min) Release Film Strength - 1 ± 0.5 Surface Resistance(Base Film) Ω/□
10v 10sec≤ 107 ASTM D-257 Haze % ≤ 2 CS Method Transmittance ≥ 88
-
